The DIANT® LARU Discovery – Research LNP Processing

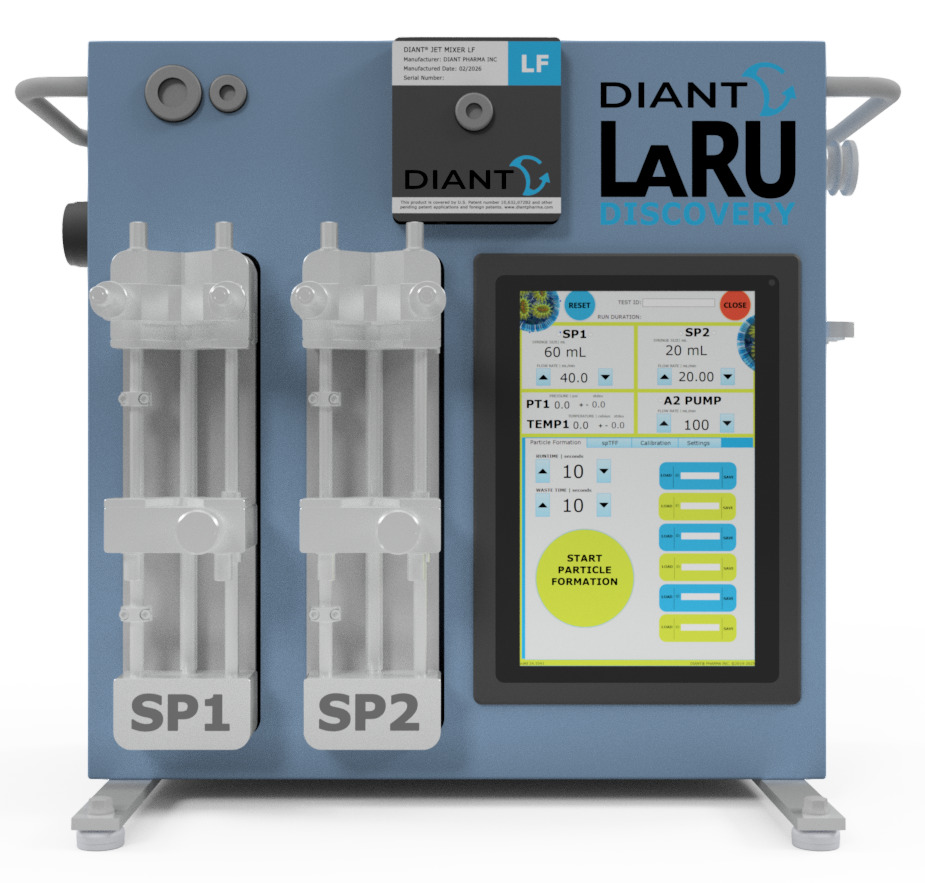

About the DIANT® LARU Discovery
The DIANT® LARU Discovery is a low flow rate, low dead volume system for research nanoparticle processing. Featuring patented turbulent jet technology, the DIANT® LARU Discovery enables lowest volume research test runs for multi-mode specification and optimization of nanoparticle processing. The LARU Discovery processing technology can be scaled with DIANT® system product offerings from clinic to commercial scale.
Nanoparticle Manufacturing with the DIANT® LARU Discovery
The LARU Discovery is a research-scale system that can continuously produce lipid nanoparticles (LNPs), liposomes, nucleic acid/lipid complexes, polymeric micelles, and suspensions.
The LARU Discovery:
- With other DIANT solutions, scalable from R&D to commercial cGMP manufacturing
- Enables a direct translation to continuous nanoparticle processing
- Produces nanoparticles of various sizes: ~25 d.nm to >500 d.nm
- Collects volumes as low as 2 mL (per run)
- Has standard connections for bottles, tubes, or 2D bags for ease of use
Solvent Injection
The LARU Discovery features DIANT® Jet technology, a patented single-jet, low flow rate, low dead volume (LDV) solvent injection system for high throughput. Used in all DIANT® systems to facilitate seamless scale-up from R&D to commercial manufacturing, DIANT® Jet technology precisely combines genetic material/API in buffer with lipids in solvents.
DIANT® LARU Discovery Specifications
Details about the DIANT® LARU Discovery, our scalable research-scale nanoparticle processing system:
- Minimum Collection Volume: 2-3 mL (per run)
- Solvent Flow Rate: 20 mL/min (nominal)
- Flow Rate Ratio: 2-8
- E1/A1 Pump Type: Syringe
- Dilution Pump Type: Peristaltic (enables 0-350 mL/min dilution rates)
- Operating Temperature Range: 15-30 degrees C
- Power Requirements: 110/220 VAC, 200 W max.
